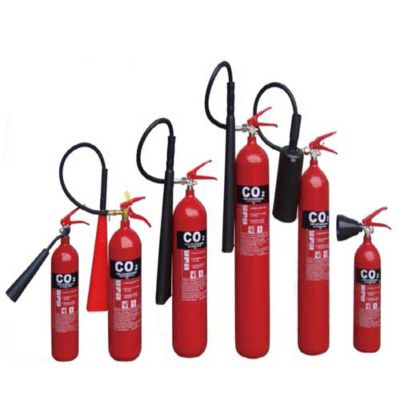

Carbon Dioxide Type Fire Extinguishers
Mark carbon dioxide type fire extinguishers cover B, C class of fires which includes inflammable liquid like oil, petrol, paints, petrochemical products, resins, gases in the compressed form like oxygen, acetylenes, LPG & CNG, electrical & sophisticated electrical equipments.
Capacity: 2kgs, 3kgs, 4.5kgs, 6.5kgs, 9kgs, 22.5kgs
Charge: Carbon Dioxide Base.
Accessories: Wall mounting brackets, hose, Trolley.
Technical Specification
| Portable | Trolley Mounted | |||||
|---|---|---|---|---|---|---|
| Conforming IS | 15683 | 15683 | 15683 | 2878 | 2878 | 2878 |
| Capacity (kg) | 2 | 3 | 4.5 | 6.5 | 9 | 22.5 |
| Filling Ratio | 0.667 | 0.667 | 0.667 | 0.667 | 0.667 | 0.667 |
| Type of Extinguishers | CO2 Type | CO2 Type | CO2 Type | CO2 Type | CO2 Type | CO2 Type |
| Type of Extinguishers Media | CO2 Gas | CO2 Gas | CO2 Gas | CO2 Gas | CO2 Gas | CO2 Gas |
| Jet Range (in mtrs.) | 2 | 2 | 2-5 | 2.5-3 | 2.5-3 | 2.5-3 |
| Discharge Time (in sec.) | 8-16 | 8-18 | 10-18 | 10-20 | 15-36 | 20-60 |
| Effective Discharge (in %.) | 95% | 95% | 95% | 95% | 95% | 95% |
| Operating Temperature Range (°C) | (-)30 to (+)55 | (-)30 to (+)55 | (-)30 to (+)55 | (-)30 to (+)55 | (-)30 to (+)55 | (-)30 to (+)55 |
