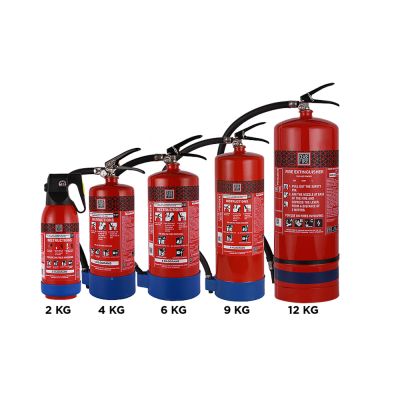

ABC Stored Pressure Type Fire Extinguishers
Mark ABC type fire extinguisher covers A, B, C class of fires which includes papers, woods, cloth, rubber, plastic and inflammable liquid like oil, petrol, paints, petrochemical products, resins, gases in the compressed form like oxygen, acetylene, LPG & CNG, electrical and sophisticated electrical equipments.
Capacity: 1kg, 2kgs, 4kgs, 6kgs, 9kgs
Charge: Dry Powder Mono Ammonium Phosphate Base.
Accessories: Wall mounting brackets, hose, belt.
Technical Specification
| Fire Extinguisher Capacity | 1 KG | 2 KG | 4 KG | 6 KG | 9 KG |
|---|---|---|---|---|---|
| Minimum Period for Which | (IS-15683) | (IS-15683) | (IS-15683) | (IS-15683) | (IS-15683) |
| Throw of Jet Maintained | 8 sec | 8 sec | 16 sec | 20 sec | 25 sec |
| Minimum Period to Discharges | |||||
| At Least 90% of Contents | 12 sec | 16 sec | 20 sec | 25 sec | 30 sec |
| Range. WT Approx | 2 mtrs | 3 mtrs | 4 mtrs | 6 mtrs | 7 mtrs |
| Empty WT. Approx | 1 kg | 2.3 kg | 2.75 kg | 3.3 kg | 5.35 kg |
| Full WT. Approx | 2 kg | 3.3 kg | 6.75 kg | 9.3 kg | 14.35 kg |
| Fire Rating | 1 A, 8 B | 1 A, 8 B | 1 A, 13 B | 2 A, 21 B | 2 A, 34 B |
| Working Pressure | 15 KGF/CM2 | 15 KGF/CM2 | 15 KGF/CM2 | 15 KGF/CM2 | 15 KGF/CM2 |
| Hydro Pressure | 35 KGF/CM2 | 35 KGF/CM2 | 35 KGF/CM2 | 35 KGF/CM2 | 35 KGF/CM2 |
| Bursting Pressure | 55 KGF/CM2 | 55 KGF/CM2 | 55 KGF/CM2 | 55 KGF/CM2 | 55 KGF/CM2 |
